Box3 Hardware Test & Repair
Diagnostic Port DB25 - how to autotest Box III:
-

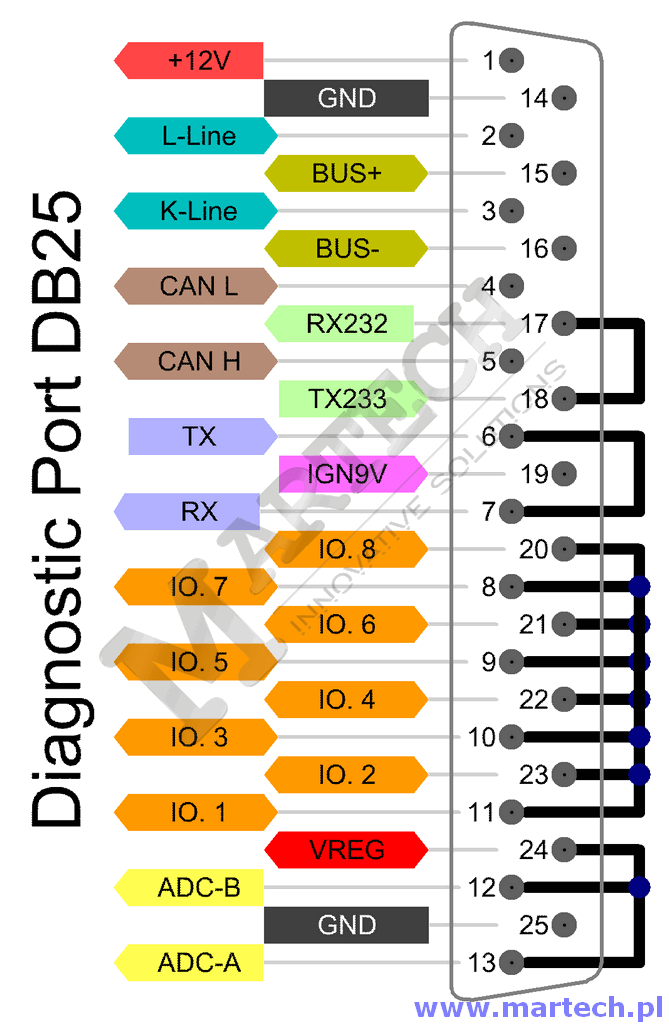

DB25 plug scheme for Box Diagnostic:
-

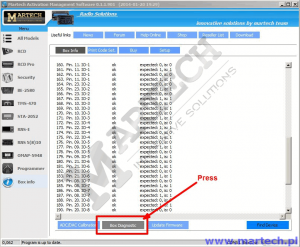

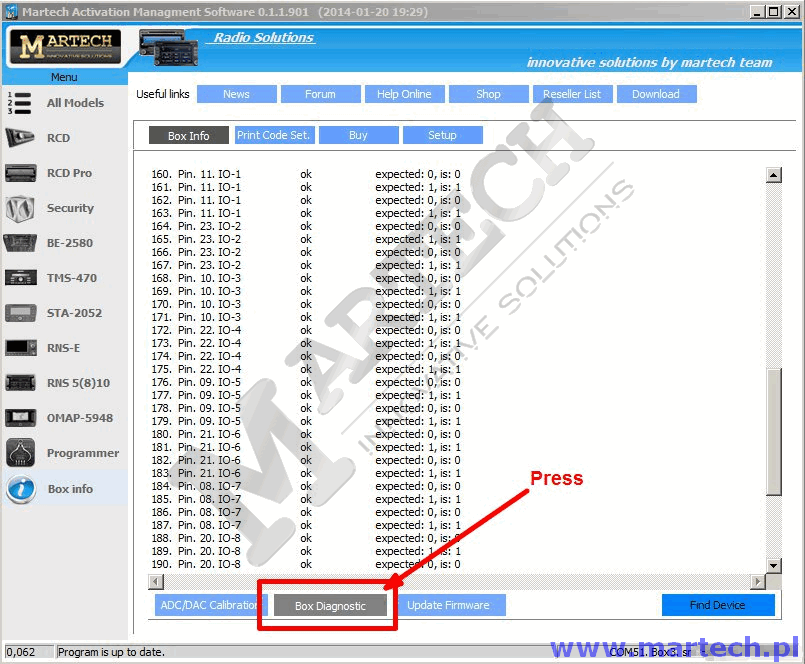

Make plug according to schematic, then go to Box Info and click on "Box Diagnostic" button:
Box self diagnostic example (without DB25 test plug inserted):
Correct test shows "No Errors Found".
-
Box Self Diagnostic - Start. 001. V-USB ok expected: 4500, is: 5094 002. V-BAT ok expected: 3400, is: 3420, tolerance: 100 003. V-REF ok expected: 1200, is: 1209, tolerance: 50 004. Temp ok expected: 2500, is: 3968, tolerance: 2000 020. Pin. 24. Vreg ok expected: 0, is: 10, tolerance: 15 021. Pin. 24. Vreg ok expected: 0, is: 0, tolerance: 10 022. Pin. 24. Vreg ok expected: 2400, is: 2409, tolerance: 20 023. Pin. 24. Vreg ok expected: 2400, is: 2403, tolerance: 20 024. Pin. 13. ADC-A skipped "Test Plug" not detected. See help online "Box Hardware". 025. Pin. 12. ADC-B skipped "Test Plug" not detected. See help online "Box Hardware". 026. Pin. 12. ADC-B skipped "Test Plug" not detected. See help online "Box Hardware". 040. Pin. 01. +12V ok expected: 4400, is: 4397, tolerance: 50 041. Pin. 01. +12V ok expected: 8000, is: 8027, tolerance: 150 042. Pin. 01. +12V ok expected: 8500, is: 9524 060. Pin. 19. IGN9V ok expected: 0, is: 0 061. Pin. 19. IGN9V ok expected: 8500, is: 9623 080. Pin. 04. CAN-L ok expected: 0, is: 0 081. Pin. 05. CAN-H ok expected: 1, is: 1 100. Pin. 15. BUS+ ok expected: 0, is: 0 101. Pin. 15. BUS+ ok expected: 1, is: 1 102. Pin. 16. BUS- ok expected: 0, is: 0 103. Pin. 16. BUS- ok expected: 1, is: 1 104. Pin. 16. BUS- ok expected: 0, is: 0 120. Pin. 18. TX232 ok expected: 1, is: 1 121. Pin. 17. RX232 skipped "Test Plug" not detected. See help online "Box Hardware". 122. Pin. 03. K-Line ok expected: 0, is: 0 123. Pin. 03. K-Line ok expected: 1, is: 1 124. Pin. 03. K-Line ok expected: 0, is: 0 125. Pin. 03. K-Line ok expected: 1, is: 1 126. Pin. 02. L-Line ok expected: 0, is: 0 127. Pin. 02. L-Line ok expected: 1, is: 1 128. Pin. 02. L-Line ok expected: 0, is: 0 129. Pin. 02. L-Line ok expected: 1, is: 1 140. Pin. 06. IO-TX skipped "Test Plug" not detected. See help online "Box Hardware". 141. Pin. 06. IO-TX ok expected: 1, is: 1 142. Pin. 06. IO-TX ok expected: 0, is: 0 143. Pin. 06. IO-TX ok expected: 0, is: 0 144. Pin. 06. IO-TX skipped "Test Plug" not detected. See help online "Box Hardware". 145. Pin. 06. IO-TX ok expected: 1, is: 1 146. Pin. 07. IO-RX ok expected: 0, is: 0 147. Pin. 07. IO-RX ok expected: 1, is: 1 148. Pin. 07. IO-RX skipped "Test Plug" not detected. See help online "Box Hardware". 149. Pin. 07. IO-RX ok expected: 0, is: 0 150. Pin. 07. IO-RX ok expected: 0, is: 0 160. Pin. 11. IO-1 ok expected: 0, is: 0 161. Pin. 11. IO-1 ok expected: 1, is: 1 162. Pin. 11. IO-1 ok expected: 0, is: 0 163. Pin. 11. IO-1 ok expected: 1, is: 1 164. Pin. 23. IO-2 ok expected: 0, is: 0 165. Pin. 23. IO-2 ok expected: 1, is: 1 166. Pin. 23. IO-2 ok expected: 0, is: 0 167. Pin. 23. IO-2 ok expected: 1, is: 1 168. Pin. 10. IO-3 ok expected: 0, is: 0 169. Pin. 10. IO-3 ok expected: 1, is: 1 170. Pin. 10. IO-3 ok expected: 0, is: 0 171. Pin. 10. IO-3 ok expected: 1, is: 1 172. Pin. 22. IO-4 ok expected: 0, is: 0 173. Pin. 22. IO-4 ok expected: 1, is: 1 174. Pin. 22. IO-4 ok expected: 0, is: 0 175. Pin. 22. IO-4 ok expected: 1, is: 1 176. Pin. 09. IO-5 ok expected: 0, is: 0 177. Pin. 09. IO-5 ok expected: 1, is: 1 178. Pin. 09. IO-5 ok expected: 0, is: 0 179. Pin. 09. IO-5 ok expected: 1, is: 1 180. Pin. 21. IO-6 ok expected: 0, is: 0 181. Pin. 21. IO-6 ok expected: 1, is: 1 182. Pin. 21. IO-6 ok expected: 0, is: 0 183. Pin. 21. IO-6 ok expected: 1, is: 1 184. Pin. 08. IO-7 ok expected: 0, is: 0 185. Pin. 08. IO-7 ok expected: 1, is: 1 186. Pin. 08. IO-7 ok expected: 0, is: 0 187. Pin. 08. IO-7 ok expected: 1, is: 1 188. Pin. 20. IO-8 ok expected: 0, is: 0 189. Pin. 20. IO-8 ok expected: 1, is: 1 190. Pin. 20. IO-8 ok expected: 0, is: 0 191. Pin. 20. IO-8 ok expected: 1, is: 1 192. Pin. 11. IO-1 skipped "Test Plug" not detected. See help online "Box Hardware". 193. Pin. 23. IO-2 skipped "Test Plug" not detected. See help online "Box Hardware". 194. Pin. 10. IO-3 skipped "Test Plug" not detected. See help online "Box Hardware". 195. Pin. 22. IO-4 skipped "Test Plug" not detected. See help online "Box Hardware". 196. Pin. 09. IO-5 skipped "Test Plug" not detected. See help online "Box Hardware". 197. Pin. 21. IO-6 skipped "Test Plug" not detected. See help online "Box Hardware". 198. Pin. 08. IO-7 skipped "Test Plug" not detected. See help online "Box Hardware". 199. Pin. 20. IO-8 skipped "Test Plug" not detected. See help online "Box Hardware". 210. Pin. 21. IO-6 ok expected: 1, is: 1 Diagnostic - End. ----------------------------------------- No Errors Found.
Box self diagnostic example (with DB25 test plug inserted):
Correct test shows "No Errors Found".
-
Box Self Diagnostic - Start. 001. V-USB ok expected: 4500, is: 4977 002. V-BAT ok expected: 3400, is: 3444, tolerance: 100 003. V-REF ok expected: 1200, is: 1205, tolerance: 50 004. Temp ok expected: 2500, is: 3816, tolerance: 2000 020. Pin. 24. Vreg ok expected: 0, is: 10, tolerance: 15 021. Pin. 24. Vreg ok expected: 0, is: 0, tolerance: 10 022. Pin. 24. Vreg ok expected: 2400, is: 2397, tolerance: 20 023. Pin. 24. Vreg ok expected: 2400, is: 2392, tolerance: 20 024. Pin. 13. ADC-A ok expected: 2400, is: 2391, tolerance: 20 025. Pin. 12. ADC-B ok expected: 2400, is: 2394, tolerance: 20 026. Pin. 12. ADC-B ok expected: 2400, is: 2315, tolerance: 100 040. Pin. 01. +12V ok expected: 4400, is: 4399, tolerance: 50 041. Pin. 01. +12V ok expected: 8000, is: 8022, tolerance: 150 042. Pin. 01. +12V ok expected: 8500, is: 9103 060. Pin. 19. IGN9V ok expected: 0, is: 0 061. Pin. 19. IGN9V ok expected: 8500, is: 9173 080. Pin. 04. CAN-L ok expected: 0, is: 0 081. Pin. 05. CAN-H ok expected: 1, is: 1 100. Pin. 15. BUS+ ok expected: 0, is: 0 101. Pin. 15. BUS+ ok expected: 1, is: 1 102. Pin. 16. BUS- ok expected: 0, is: 0 103. Pin. 16. BUS- ok expected: 1, is: 1 104. Pin. 16. BUS- ok expected: 0, is: 0 120. Pin. 18. TX232 ok expected: 1, is: 1 121. Pin. 17. RX232 ok expected: 0, is: 0 122. Pin. 03. K-Line ok expected: 0, is: 0 123. Pin. 03. K-Line ok expected: 1, is: 1 124. Pin. 03. K-Line ok expected: 0, is: 0 125. Pin. 03. K-Line ok expected: 1, is: 1 126. Pin. 02. L-Line ok expected: 0, is: 0 127. Pin. 02. L-Line ok expected: 1, is: 1 128. Pin. 02. L-Line ok expected: 0, is: 0 129. Pin. 02. L-Line ok expected: 1, is: 1 140. Pin. 06. IO-TX ok expected: 1, is: 1 141. Pin. 06. IO-TX ok expected: 1, is: 1 142. Pin. 06. IO-TX ok expected: 0, is: 0 143. Pin. 06. IO-TX ok expected: 0, is: 0 144. Pin. 06. IO-TX ok expected: 0, is: 0 145. Pin. 06. IO-TX ok expected: 1, is: 1 146. Pin. 07. IO-RX ok expected: 0, is: 0 147. Pin. 07. IO-RX ok expected: 1, is: 1 148. Pin. 07. IO-RX ok expected: 1, is: 1 149. Pin. 07. IO-RX ok expected: 0, is: 0 150. Pin. 07. IO-RX ok expected: 0, is: 0 160. Pin. 11. IO-1 ok expected: 0, is: 0 161. Pin. 11. IO-1 ok expected: 1, is: 1 162. Pin. 11. IO-1 ok expected: 0, is: 0 163. Pin. 11. IO-1 ok expected: 1, is: 1 164. Pin. 23. IO-2 ok expected: 0, is: 0 165. Pin. 23. IO-2 ok expected: 1, is: 1 166. Pin. 23. IO-2 ok expected: 0, is: 0 167. Pin. 23. IO-2 ok expected: 1, is: 1 168. Pin. 10. IO-3 ok expected: 0, is: 0 169. Pin. 10. IO-3 ok expected: 1, is: 1 170. Pin. 10. IO-3 ok expected: 0, is: 0 171. Pin. 10. IO-3 ok expected: 1, is: 1 172. Pin. 22. IO-4 ok expected: 0, is: 0 173. Pin. 22. IO-4 ok expected: 1, is: 1 174. Pin. 22. IO-4 ok expected: 0, is: 0 175. Pin. 22. IO-4 ok expected: 1, is: 1 176. Pin. 09. IO-5 ok expected: 0, is: 0 177. Pin. 09. IO-5 ok expected: 1, is: 1 178. Pin. 09. IO-5 ok expected: 0, is: 0 179. Pin. 09. IO-5 ok expected: 1, is: 1 180. Pin. 21. IO-6 ok expected: 0, is: 0 181. Pin. 21. IO-6 ok expected: 1, is: 1 182. Pin. 21. IO-6 ok expected: 0, is: 0 183. Pin. 21. IO-6 ok expected: 1, is: 1 184. Pin. 08. IO-7 ok expected: 0, is: 0 185. Pin. 08. IO-7 ok expected: 1, is: 1 186. Pin. 08. IO-7 ok expected: 0, is: 0 187. Pin. 08. IO-7 ok expected: 1, is: 1 188. Pin. 20. IO-8 ok expected: 0, is: 0 189. Pin. 20. IO-8 ok expected: 1, is: 1 190. Pin. 20. IO-8 ok expected: 0, is: 0 191. Pin. 20. IO-8 ok expected: 1, is: 1 192. Pin. 11. IO-1 ok expected: 0, is: 0 193. Pin. 23. IO-2 ok expected: 0, is: 0 194. Pin. 10. IO-3 ok expected: 0, is: 0 195. Pin. 22. IO-4 ok expected: 0, is: 0 196. Pin. 09. IO-5 ok expected: 0, is: 0 197. Pin. 21. IO-6 ok expected: 0, is: 0 198. Pin. 08. IO-7 ok expected: 0, is: 0 199. Pin. 20. IO-8 ok expected: 0, is: 0 210. Pin. 21. IO-6 ok expected: 1, is: 1 Diagnostic - End. ----------------------------------------- No Errors Found.
Box III Repair KIT:

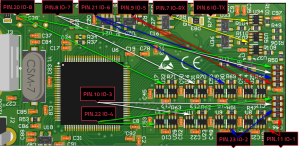

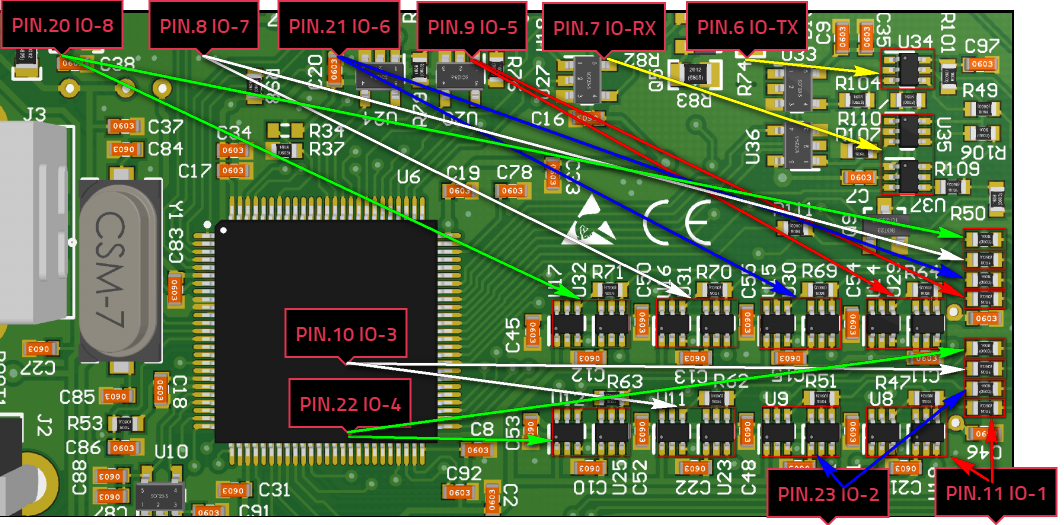

If you have such errors after test:
Pin. 21. IO-6............ FAIL............ expected: 2000, is: 0
Please do Box 3 repair using this set: Repair kit
